Sediment Filter Cartridge 50 micron
SFC-50
Sediment Filter Cartridge
Sediment Filter Cartridge 25 micron, Filter Cartridge 25 micron, Sediment Filter 25 micron, Sediment Filter Cartridge, 25 micron, Filter Cartridge, Filter Cartridge micron

Sediment Filter Cartridge 50 micron

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

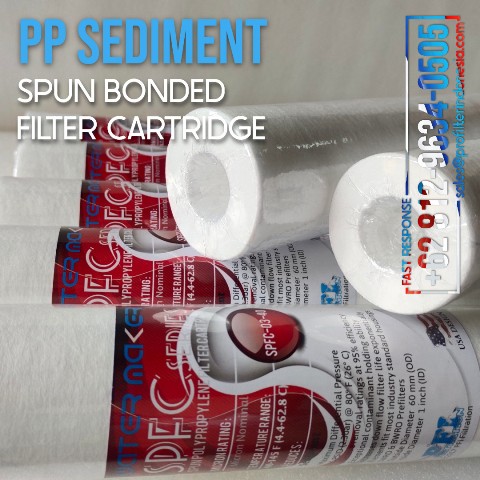

Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.



 Features

 100 % Polypropylene for wide chemical compatibility

 Excellent flow with low pressure drop

 Excellent flow with low pressure drop

 High strength & pressure resistance

 Nominal & absolute filtration rating

 Free of surfactants, Binders and Adhesives

 High dirt holding capacity

 One piece construction up to1016 mm. and more



 Technical Specifications

 Sizes : 10” , 20” , 30” 40” Long

 Inner Diameter : 25mm , 28 mm , 48 mm

 Outer Diameter : 64 mm ( 2.5” ) , 114mm ( 4.5” ) , 6” , 8”

 Micron Rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100



 Configuration

 Double Open Type ( DOE Type)

 Code 7 ( 226 O Ring Design)



 Construction

 Spun bonded filter cartridges are made up of 100% Polypropylene

Sediment Filter Cartridge 50 micron

 Applications

 Pharmaceuticals: base product clarifications, membrane pre filter

 Fine chemicals: solvents, process streams, water purification

 Food & beverages: bottled water, flavors, polishing lines

 Petrochemicals: water flood, completion fluids, amines

 Water treatment: membrane protection, resin trap

 Cosmetics: alcohols, essential oils , water lines

 Electronics: electroplating, etching, image development

 Metal finishing: plating solution, paint and resin products, wash

 Magnetic coating: dispersions, coating lines, solvents



Cotton String Wound Filter Cartridge



PFI cartridges are available with Polypropylene, or Cotton materials wound onto Polypropylene, 304 stainless steel or tinned steel cores. The cartridges can be used (in one combination of materials or another) in most areas chemical compatibility is of concern. Special materials are available for high temperature or unusually aggressive applications. Food grade product (FDA PP Fibre) is always available ex-stock. Activated carbon cartridges are available to remove unpleasant tastes and odors.

Sediment Filter Cartridge

PFI FILTER CORE SELECTION GUIDE

Polypropylene:  economical core of choice for most applications in water and corrosives to 200ºF.

Tin Plated Steel: General purpose metal core for oils, solvents,paints, and other non-FDA applications. For use to 400ºF.

304 Stainless Steel: For high temperature applications on diluted acids and moderately corrosive fluids. For use to 750ºF.

316 Stainless Steel: For high temperature applications on strong acids and highly corrosive fluids. For use to 750ºF.

Glass-filled nylon for strong acids and highly corrosive fluids when polypropylene is not compatible.



PFI-PP Standard Polypropylene String Wound
For concentrated acids and alkalies, strong oxidizing agents, and corrosive fluids and gases. Easily incinerated to trace ash. For use to 200º F



PFI-PD FDA Grade Polypropylene String Wound
Ideally suited for potable water, Pharmaceutical and Food Processing Applications.



PFI-NC Natural Cotton String Wound
For oils, water, paints, organic solvents, alcohols, and petroleum. Non-FDA applications. For use to 300º F.



PFI-BC Bleached Cotton String Wound
Bleached to meet FDA standards for distilled water, beverages, vegetable oils, petroleum, fatty acids, and alcohols. For use to 300º F. FDA approved.



PFI-FG Fiberglass String Wound
Available in both standard and baked media. Baking removes all traces of oil sizing, yielding virgin glass fiber. For use to 750º F.
